Overview of our OS sensors

Our high-resolution lidar sensors, perception software, and solutions are ushering in a new era for safety, efficiency, and sustainability by integrating into existing and future applications.

Highlight Differences

Range at 10% Target

Precision (up to)

Vertical Resolution (up to)

Horizontal Resolution (up to)

Weight

Vertical Resolution

Maximum Representable Range

Vertical Field of View

Vertical Angular Resolution

Horizontal Resolution

Horizontal Field of View

Horizontal Angular Resolution

Points per Second

Frame Rate

Number of Returns

Ingress Protection

Typical Power Consumption

Operating Voltage

Operating Temperature

Time Synchronization

Embedded IMU

Minimum Range

Near-IR Ambient Data

Ethernet Options

Beam Configuration Options

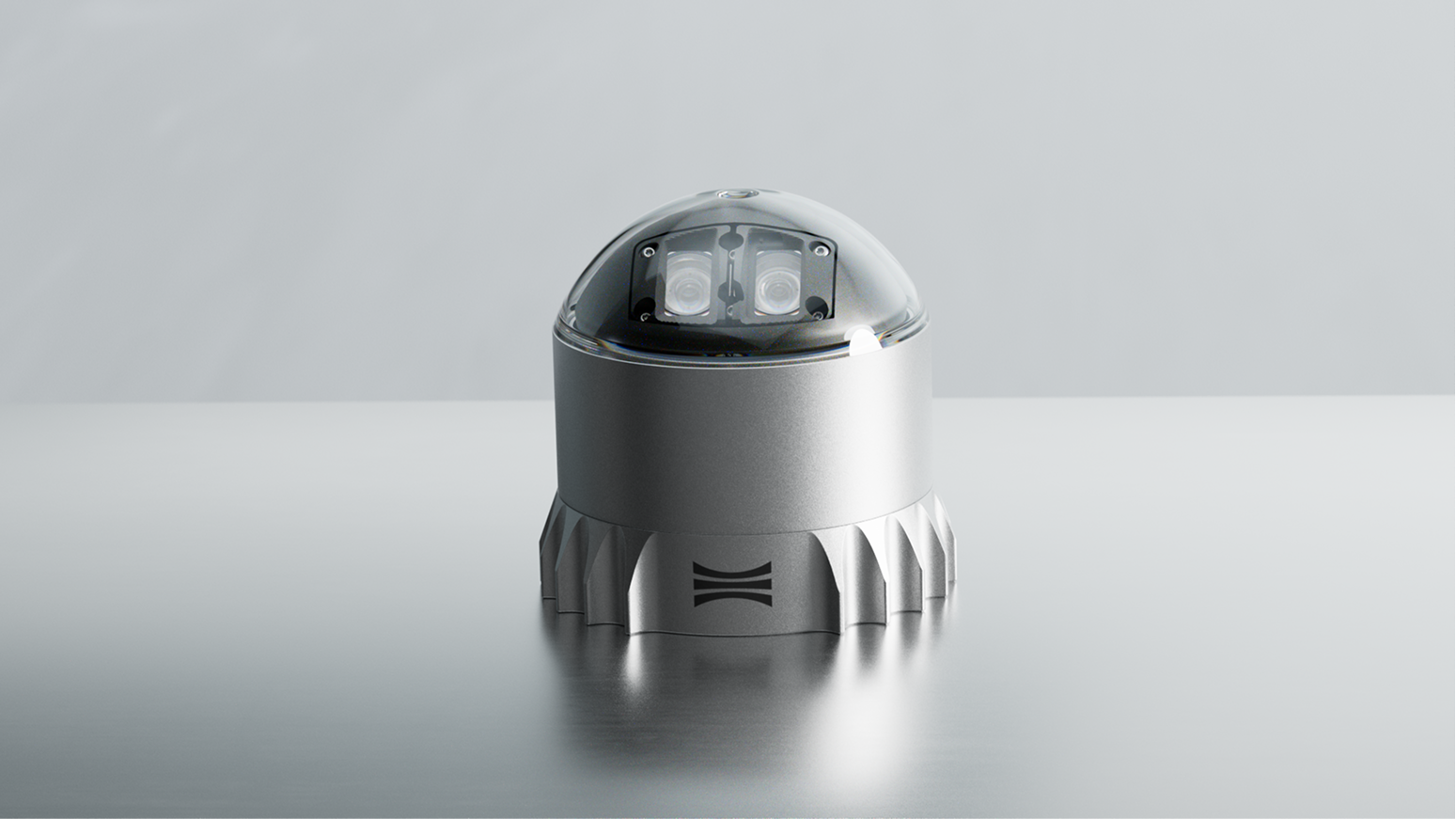

OSDome

Hemispherical FOV

180°

OS Dome – A hemispherical lidar sensor with a 180º field of view, ideal for security, smart infrastructure, and autonomous system awareness.

Download Specifications

20 m

1 cm +/-

1.4°

0.18°

470 g

32, 64 or 128

~100 m

180°

1.4º (64ch), 0.7º (128ch)

512, 1024, or 2048

360°

0.18°

up to 5,242,880

10 or 20 Hz

2 (strongest, second strongest)

IP68, IP69K

14-20 W

12 / 24 V

-40 to +60 .C

gPTP; PTP; $GPRMC

Yes

0.5 m

Yes

1000-BaseT or 1000-BaseT1

For 32 and 64 channel options

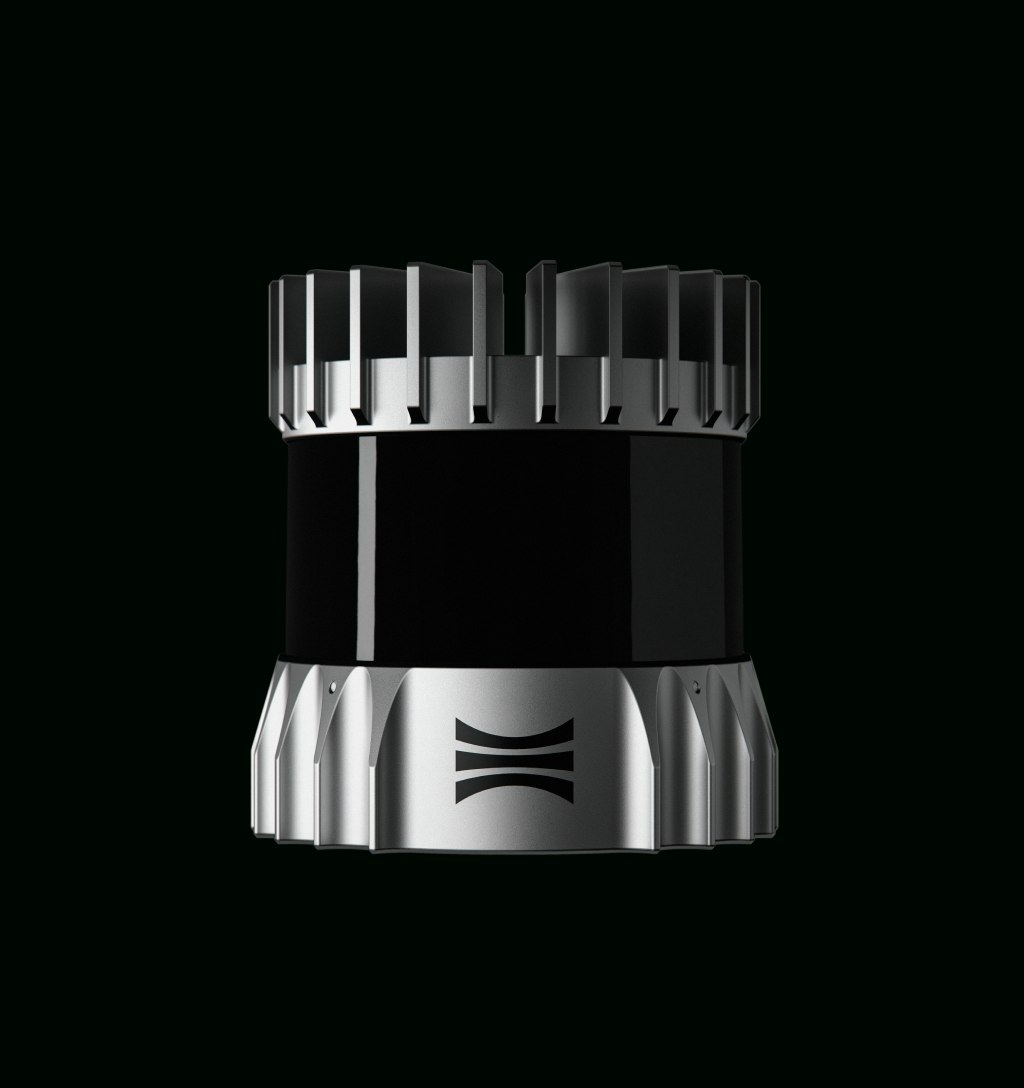

OS0

Ultra-Wide FOV

90°

An ultra-wide field-of-view sensor designed for short-range, high-precision perception in robotics, warehouse automation, and industrial applications.

Download Specifications

35 m

0.8 cm +/-

1.4°

0.18°

500 g

32, 64 or 128

~100 m

90°

1.4º (64ch), 0.7º (128ch)

512, 1024, or 2048

360°

0.18°

up to 5,242,880

10 or 20 Hz

2 (strongest, second strongest)

IP68, IP69K

14-20 W

12 / 24 V

-40 to +60 .C

gPTP; PTP; $GPRMC

Yes

0.0 m

Yes

1000-BaseT or 1000-BaseT1

For 32 and 64 channel options

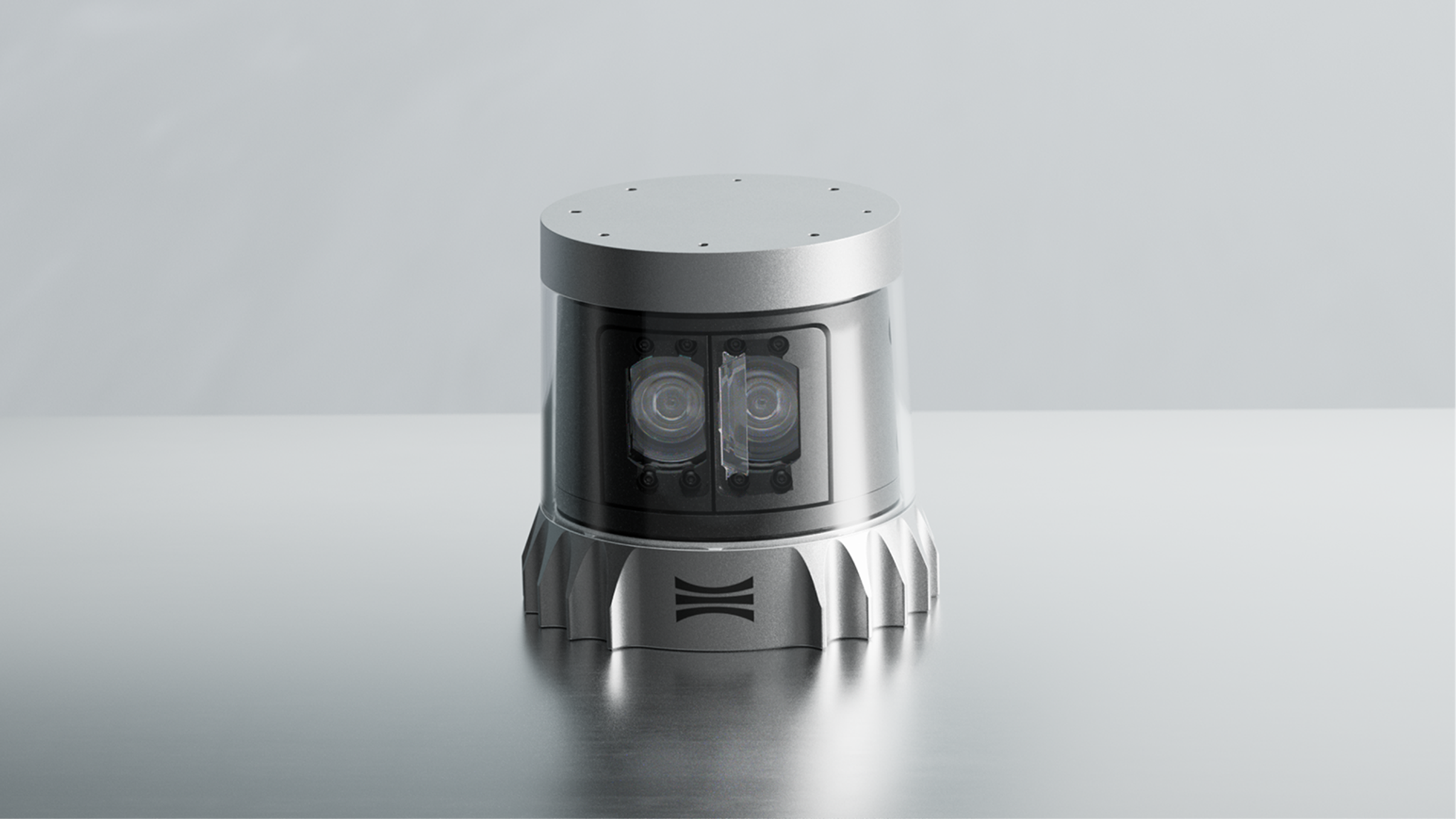

OS1

Mid-Range FOV

42.4°

A mid-range sensor balancing resolution and range, making it a versatile choice for security, smart infrastructure, and autonomous vehicles.

Download Specifications

90 m

0.5 cm +/-

0.7°

0.18°

482 g

32, 64 or 128

~200 m

42.4°

0.7. (64ch), 0.35. (128ch)

512, 1024, or 2048

360°

0.18°

up to 5,242,880

10 or 20 Hz

2 (strongest, second strongest)

IP68, IP69K

14-20 W

12 / 24 V

-40 to +60 .C

gPTP; PTP; $GPRMC

Yes

0.5 m

Yes

1000-BaseT or 1000-BaseT1

For 32 and 64 channel options

OS2

Long-Range FOV

22.5°

A long-range sensor delivering high-resolution perception for large-scale infrastructure monitoring, security, and autonomous mobility.

Download Specifications

200 m

2 cm +/-

0.36°

0.18°

1,100 g

32, 64 or 128

~400 m

22.5°

0.36. (64ch), 0.17. (128ch)

512, 1024, or 2048

360°

0.18°

up to 2,621,440

10 or 20 Hz

2 (strongest, second strongest)

IP68, IP69K

18-24 W

12 / 24 V

-20 to +60 .C

gPTP; PTP; $GPRMC

Yes

0.8 m

Yes

1000-BaseT or 1000-BaseT1

For 32 and 64 channel options

OSDome
20 m
OS0
35 m
OS1
90 m
OS2
200 m
