90m
Range at 10%
200m
Max Range

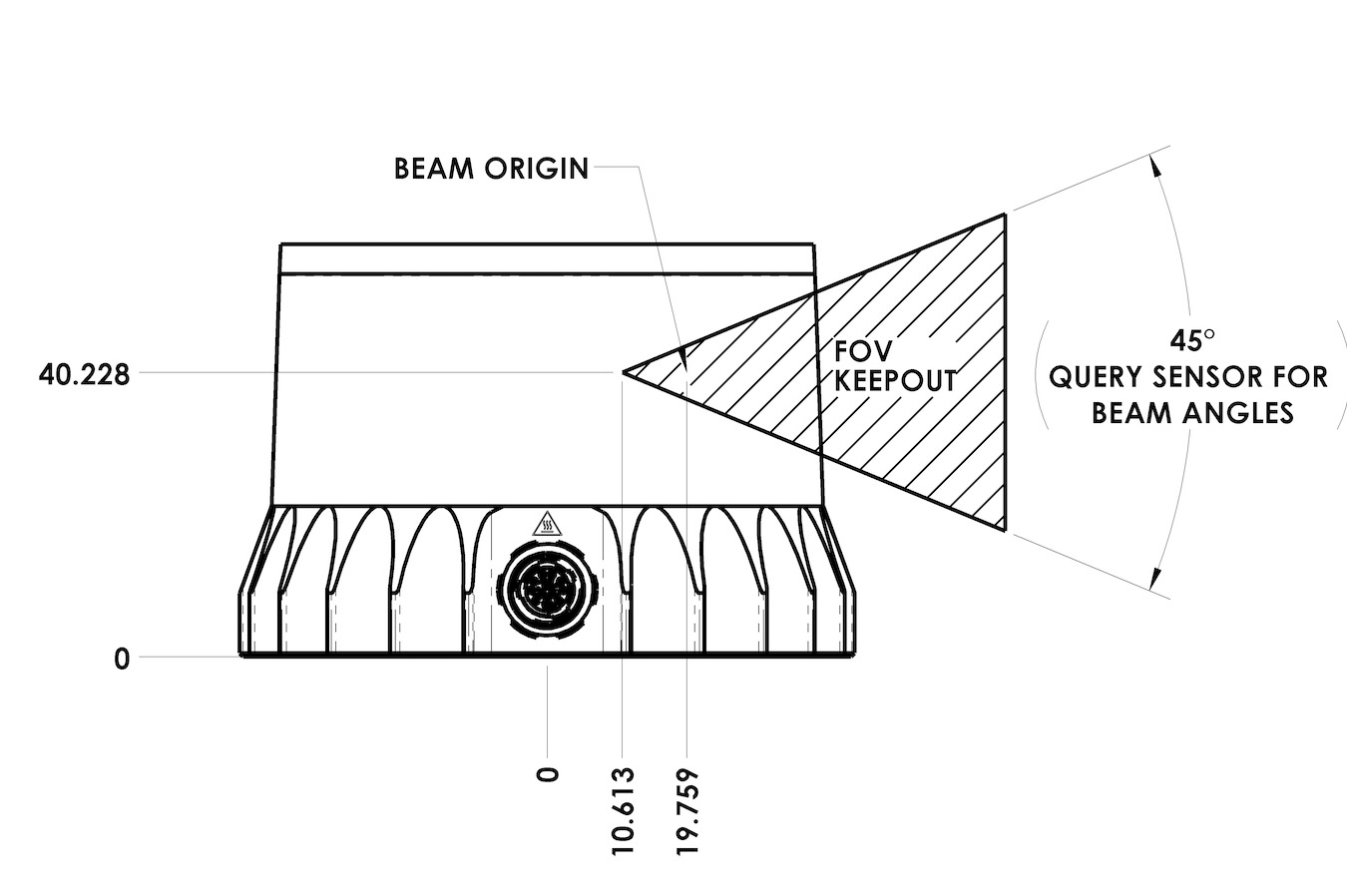

45º
Vertical Field of View
128
Channels of Resolution
5.2M
Max points per second
20 Hz
Max Frame Rate
-40°C
Min. Operating Temperature
60°C
Max. Operating Tempture
IP68 &IP69K
Ingress protection
Up to 5.2m points per second with 128 channels
of vertical resolution.
Engineered for industrial, robotics, mapping, security, crowd analytics, traffic, and automotive applications.
Tested and proven durability for use in rugged environments with real world shock and vibe.
200m max range for applications that require distance.
Completely privacy preserving and GDPR/CCPA compliant for use in security, crowd analytics, and ITS.
Let’s drive society’s shift towards full autonomy.

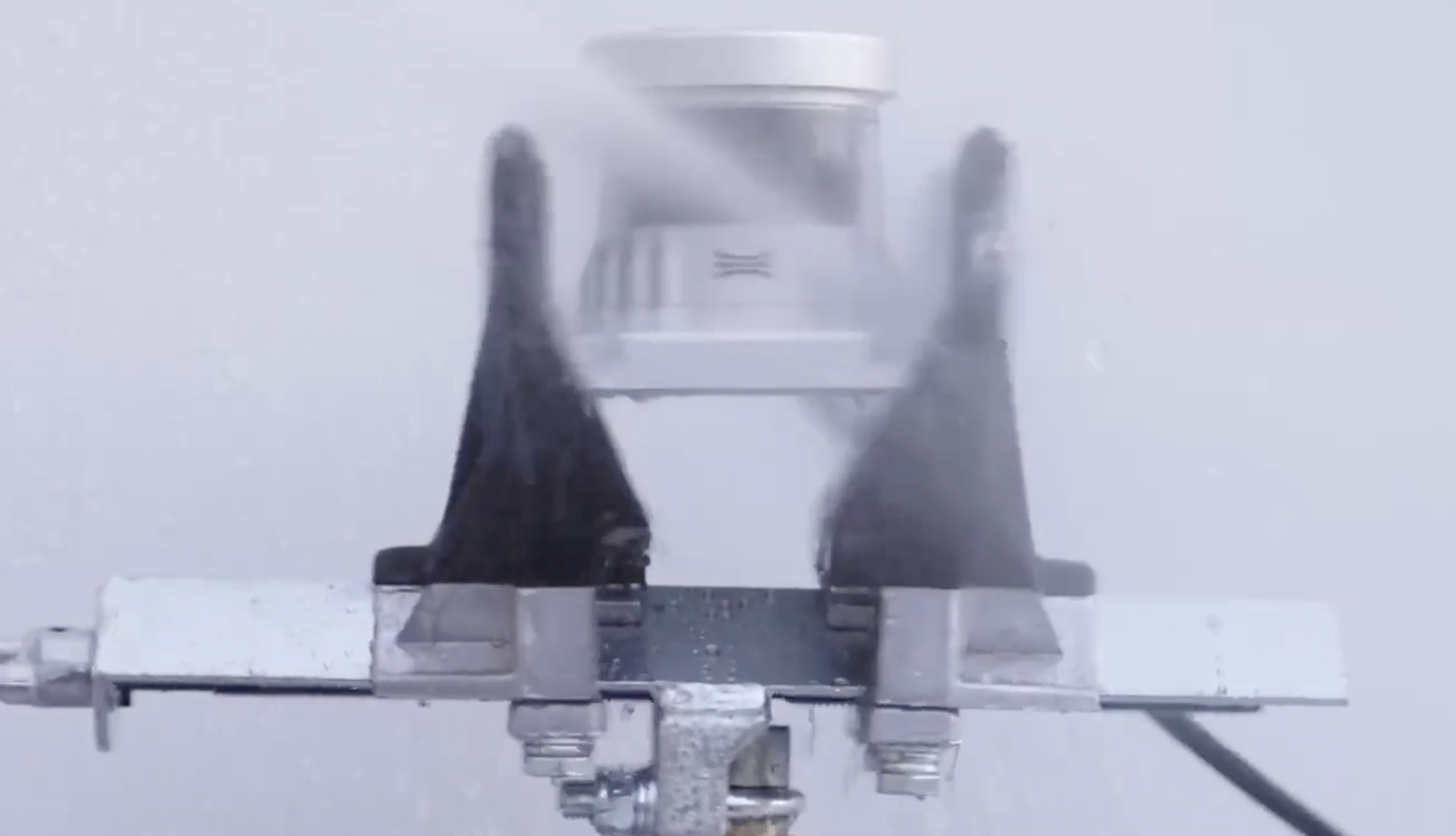

Rigorously tested for robustness and reliability surpassing industry standards.
Quality and reliability testing is a top priority at Ouster. Over the past year, our group of veterans from the solar industry have tested the OS1 in a broad array of conditions as part of a structured quality and reliability engineering design and validation process.

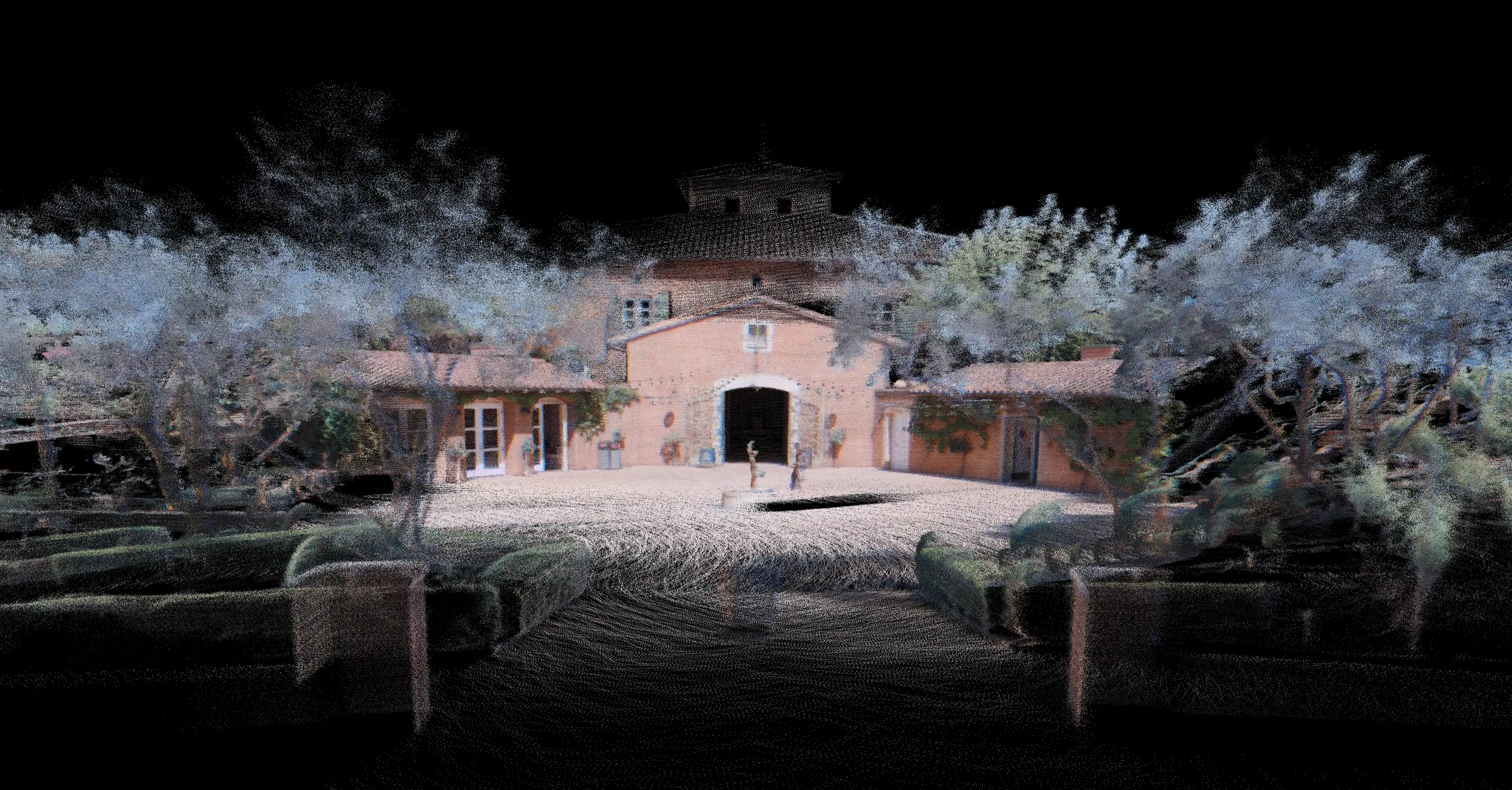

Unparalleled mapping capabilities.
Calibrated reflectivity for guaranteed visibility
even in extreme conditions.
Powered by the L3
21.47 Gmacs Of signal processing 125 Million Transistors on chip 5.2 Million Max points per second
The evolution of our Chips
Performance is measured in Range x Points per second.
L1 Chip
2019
L2 Chip
2020
L2X Chip
2021
L3 Chip
2022
Back side illuminated spads.
2x range increase over previous generations.
10x photon sensitivity over the previous generation.
Up to 400m range and 5.2M points/sec.
L1 Chip
2019
L2 Chip
2020
L2X Chip
2021
L3 Chip
2022
Build faster with high-volume manufacturing and worldwide fulfillment.
We offer a scalable outsourced manufacturing and operate local fulfillment in three major global regions, ensuring efficient order fulfillment, faster lead times, and lower total costs.
We’re building sensors designed for progress.
Case Studies with OS1
Ouster sensors are used by hundreds of customers worldwide, from raw material to last mile delivery.
Microavia
Through pre-programmed autonomous missions that require zero human intervention and employing a self-charging drone, Microavia is monitoring and managing snow distribution at ski resorts throughout the world, adding weeks to opening seasons at resorts and providing support for avalanche control, detection, and mitigation, helping keep skiers and workers safe.
Bluewhite
Bluewhite provides autonomous solutions for a range of agricultural tractors. By managing the autonomous operations of an entire farm’s fleet of tractors, one operator can oversee zero-downtime operations, increasing efficiency and productivity in the field.
Open Space and Avanti West Coast Rail, UK
With an emphasis on proactive station management and creating a link between engineers, architects, and end-customer experience, Open Space and Avanti West Cost Rail are transforming the way the UK rail network is managed.
