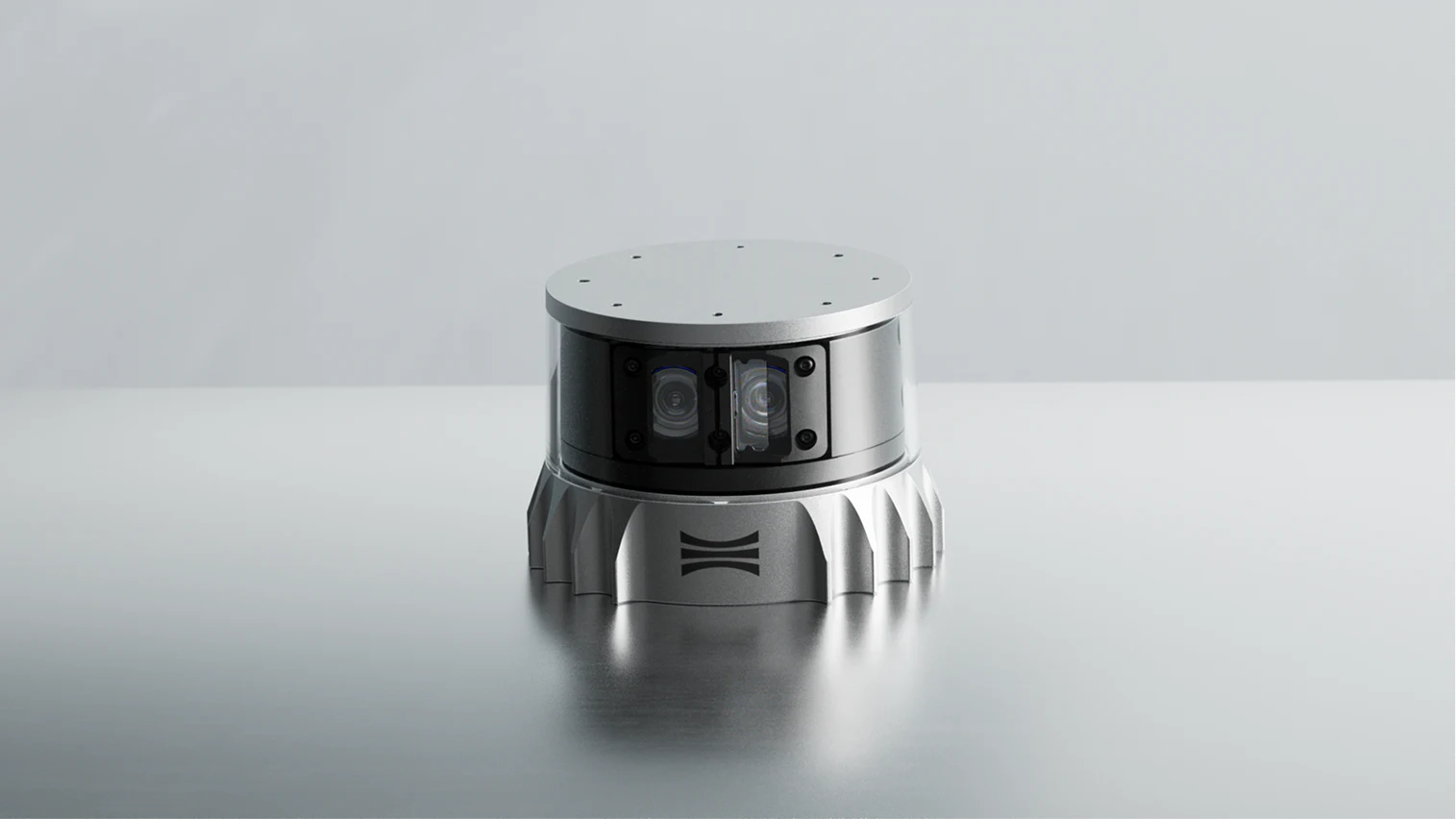

ULTRA-WIDE VIEW LIDAR SENSOR

OS0

ULTRA-WIDE VIEW LIDAR SENSOR

OS0

See more with the OS0 digital lidar sensor’s 90º field of view and minimum range of zero.

Ouster OS0 in action

Includes built-in IMU for SLAM algorithm support
Creates a uniformly spaced point cloud and pixel-aligned 2D camera images for more efficient data processing, faster labeling, and streamlined algorithm application

Raw point cloud of an OS0-128 on a drive through San Francisco. The sensor is on the front right corner of the vehicle.

“May Mobility wouldn't be where we are today as a company delivering autonomous mobility as a service without incorporating ultra-wide view lidar sensors.”

- Tom Voorheis

Director of Autonomy Engineering, May Mobility

Ultra-wide vertical field of view

LIDAR THAT SEES MORE

Enhance situational awareness with the OS0’s 90º field of view and minimum detection range of zero.

Lightweight modular design

INTEGRATION OPTIONS FOR ANY DEPLOYMENT

Weighing only 455 g and featuring a modular cap design, this lidar sensor seamlessly integrates into your vehicle, drone, or robot.

Rugged and reliable

ALL-WEATHER TOUGH

Ouster lidar sensors are designed for 100,000 hours of continuous use. Water-proof, robust to shock and vibration, and temperature rated from -40 ºC to +55 ºC.

Data quality

ALGORITHM OPTIMIZED

The structured digital lidar data output and unmatched intensity data quality from Ouster lidar sensors improves algorithm efficiency and accuracy.

Upgradeable firmware

GREAT KEEPS GETTING BETTER

Frequent firmware updates add features and improve sensor performance, helping you get more out of your sensors.

OS0 lidar beam configurations

Choose the configuration that’s right for your deployment

Uniform

Gradient

Below horizon

OS0-32

OS0-64

OS0-128

Vertical Resolution

OS0-3232 channels

OS0-6464 channels

OS0-128128 channels

Horizontal Resolution

OS0-32512, 1024, or 2048

OS0-64512, 1024, or 2048

OS0-128512, 1024, or 2048

Range

OS0-3250 m

OS0-6450 m

OS0-12850 m

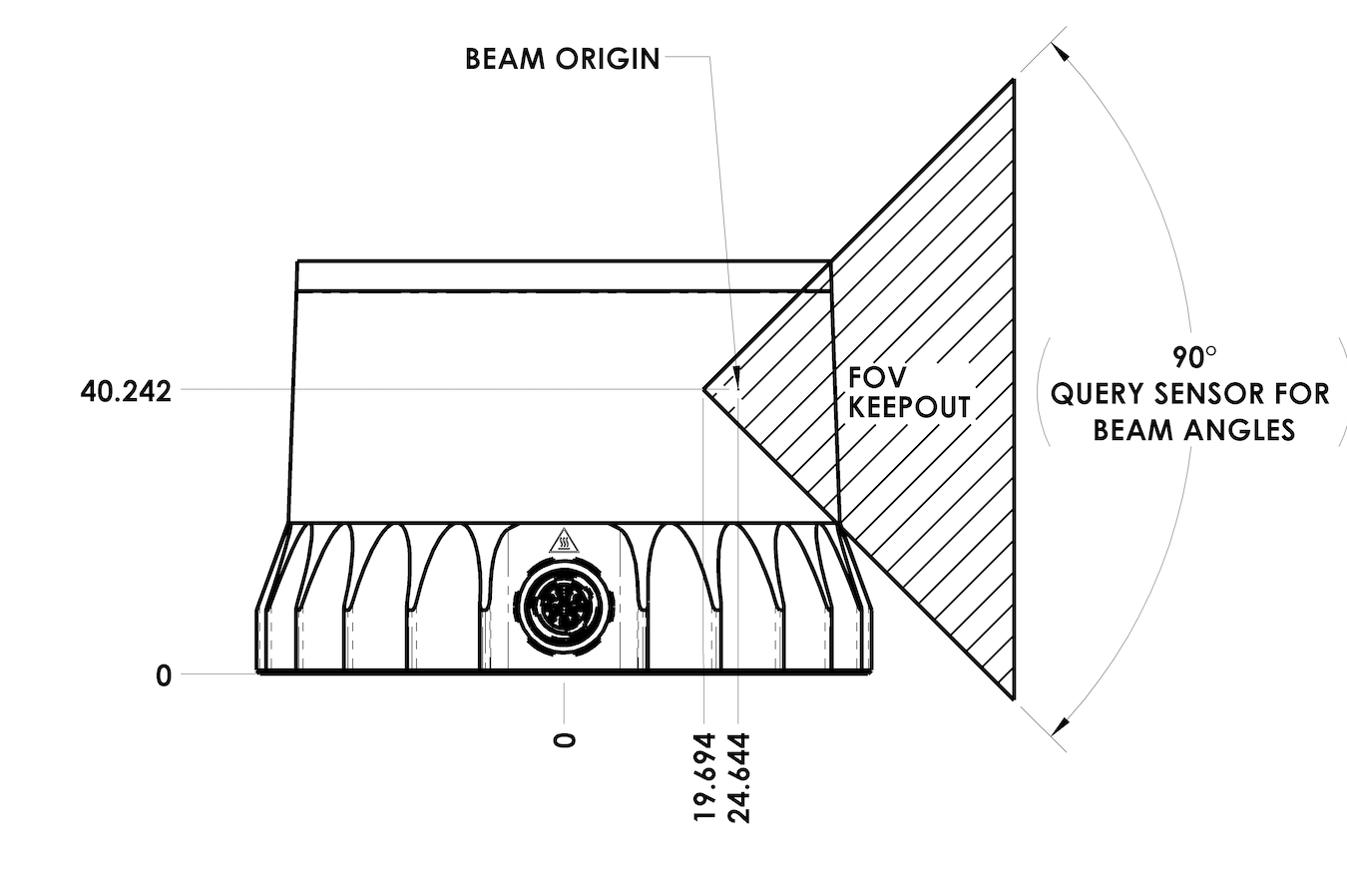

Vertical Field of View

OS0-3290° (±45º)

OS0-6490° (±45º)

OS0-12890° (±45º)

Vertical Angular Resolution

OS0-320.7º – 5.5º (multiple options)

OS0-640.7º – 5.5º (multiple options)

OS0-1280.7º

Precision

OS0-32±1.5 – 5 cm

OS0-64±1.5 – 5 cm

OS0-128±1.5 – 5 cm

Points Per Second

OS0-32655,360

OS0-641,310,720

OS0-1282,621,440

Rotation Rate

OS0-3210 or 20 Hz

OS0-6410 or 20 Hz

OS0-12810 or 20 Hz

Power Draw

OS0-3214 – 20 W

OS0-6414 – 20 W

OS0-12814 – 20 W

Weight

OS0-32455 g

OS0-64455 g

OS0-128455 g

Ingress Protection Rating

OS0-32IP68, IP69K

OS0-64IP68, IP69K

OS0-128IP68, IP69K

Additional features of the OS0

PTP and NMEA/PPS time synchronization options
On-the-fly programming of frame rate and horizontal resolution
Fixed angle data measurement
Multi-sensor crosstalk resistance
Pluggable space-style bayonet connector
Over-the-network firmware updates
Class 1 Eye Safe per IEC/EN 60825-1:2014
Output: range, intensity, reflectivity, ambient NIR, azimuth angle, time stamp

OS0 lidar sensor accessories

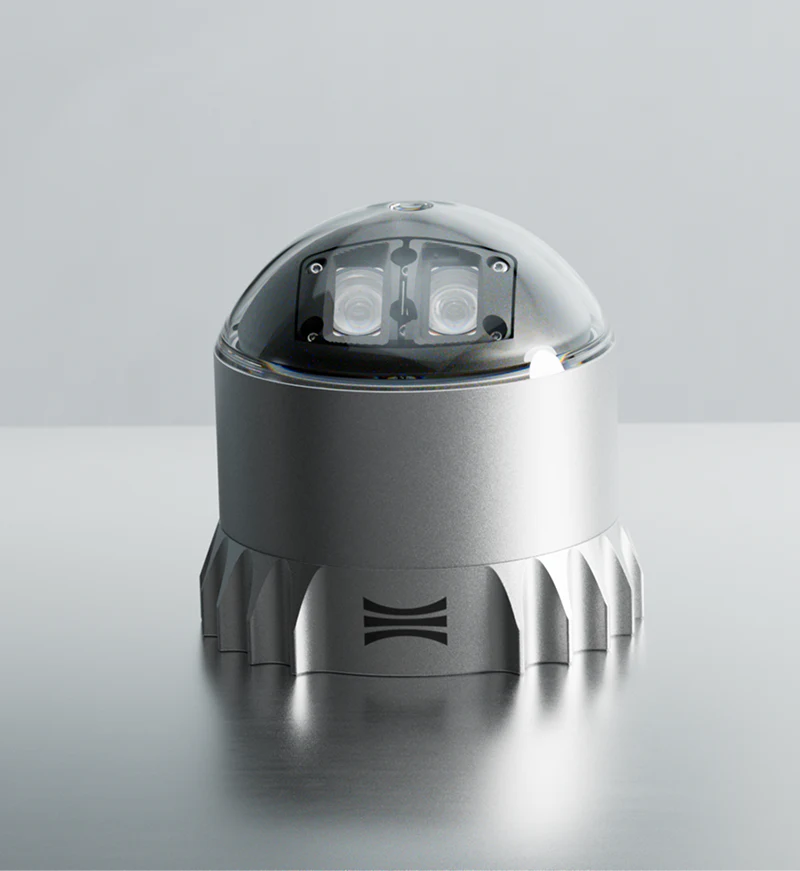

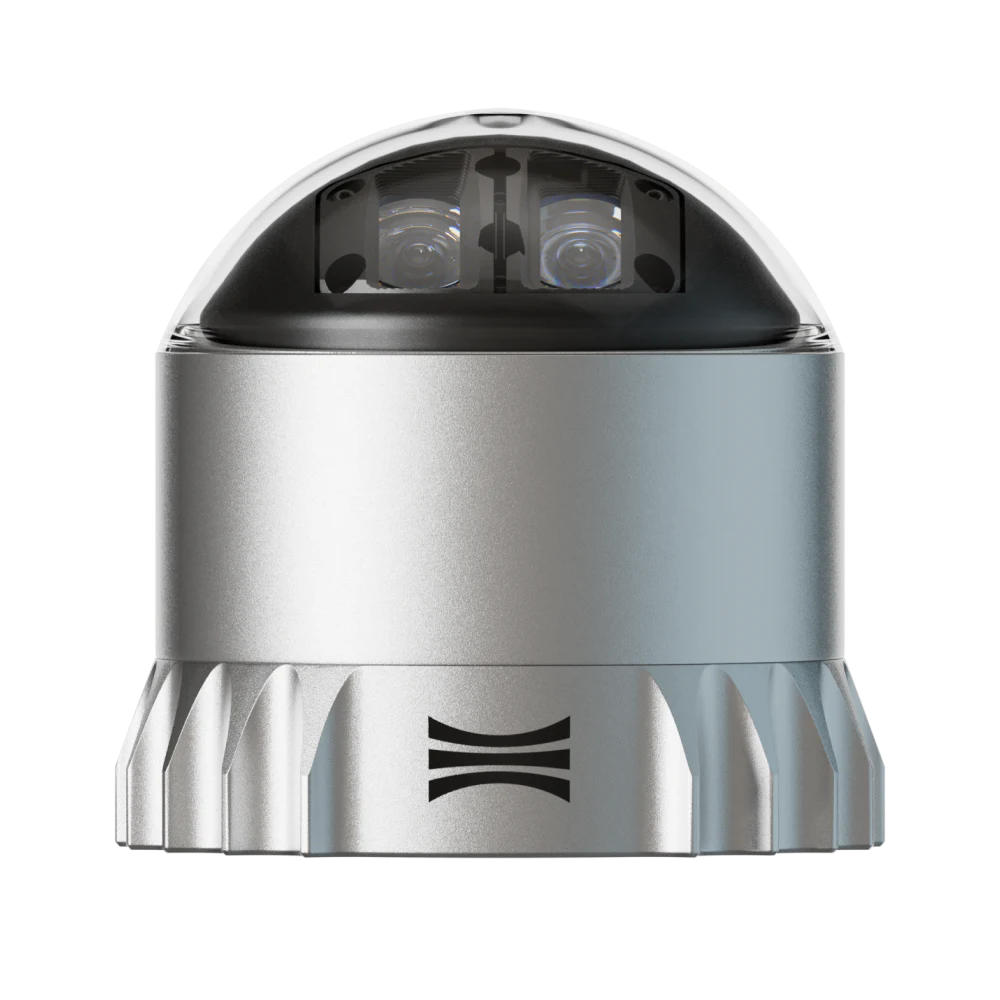

SENSOR CAPS

Radial

CONNECTORS

Straight

INTERFACE OPTIONS

Interface box

Pig-tail cable

CABLE LENGTHS

2 m

5 m

10 m

The Ouster advantage

.index-module--backgroundImage--zK3iY:before { opacity: 1; background-image: url('//images.ctfassets.net/tjhl2s1515g8/7mJajJzfgD7Q21QpTJ7PrF/562e3e2f4b6c61567b71211d3de1b841/arrow_icon.png?w=1900&h=1221&q=100&bg=rgb%3A000000'); }

Always improving

Regular firmware updates continuously add features and improve performance.

.index-module--backgroundImage--zK3iY.gbi--791655414-49yrkUcEueKmED8fRi2ZF5:before { opacity: 1; background-image: url('//images.ctfassets.net/tjhl2s1515g8/2U1lKEG9DvFNg0jrhlTWK8/8d2a0a1eadb38ef228e5888afa19751b/support.png?w=1900&h=1221&q=100&bg=rgb%3A000000'); }

Technical support team

Our team of applications engineers is here to answer your questions to help get your deployment moving.

.index-module--backgroundImage--zK3iY.gbi--1137094761-rNAJCacXaL1cYLyuVd6tdN:before { opacity: 1; background-image: url('//images.ctfassets.net/tjhl2s1515g8/lobJ1oqEr7TLhwmpwmH1H/913ecb5168c92d4ce3387158d91f4d00/warranty.png?w=1900&h=1221&q=100&bg=rgb%3A000000'); }

Up to three-year warranty

Deploy Ouster's lidar sensors with confidence, knowing that we stand behind our rugged, reliable sensors.
