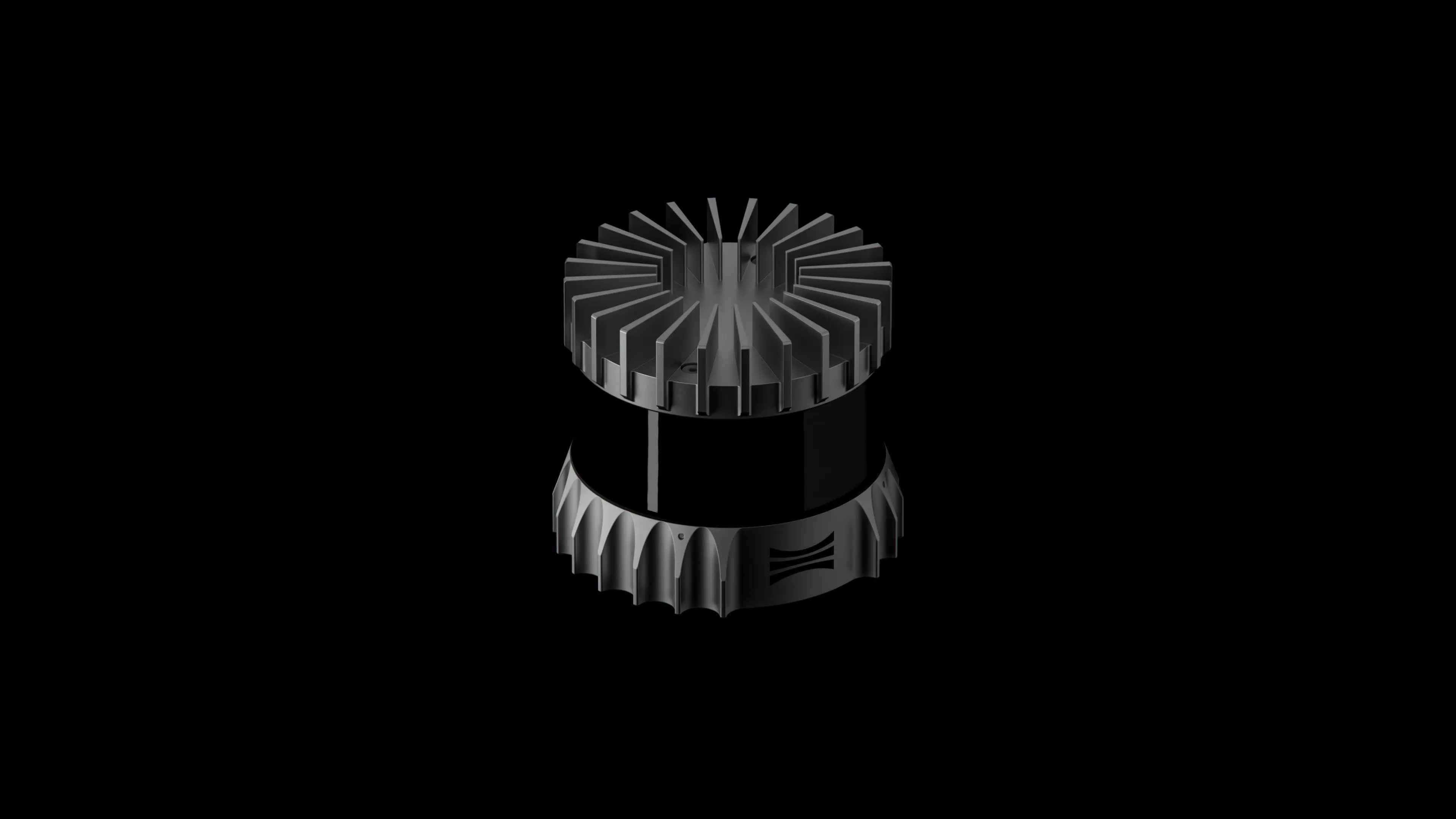

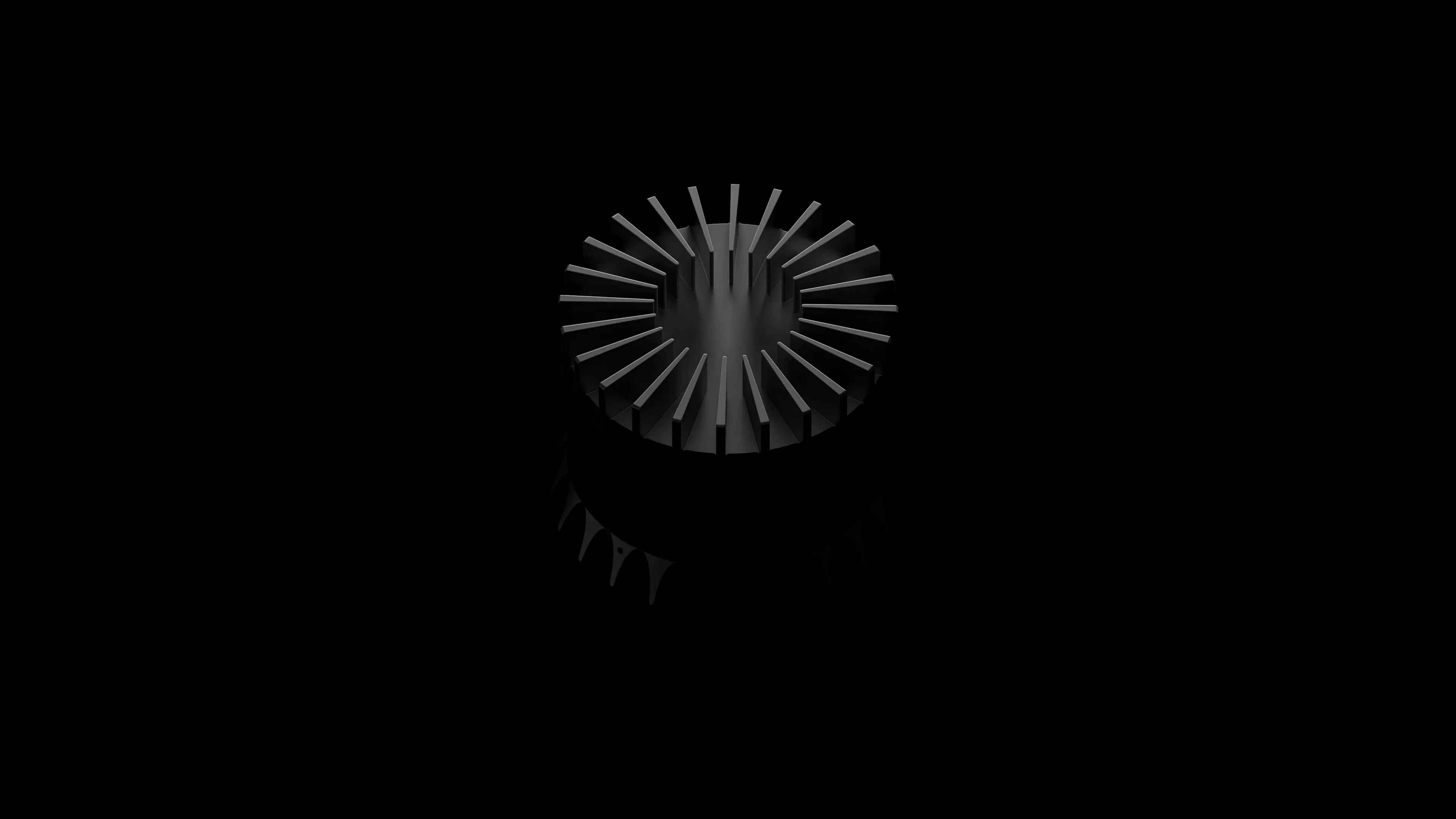

OS1
Powered by the L3 chip and engineered to deliver best-in-class versatility and field of view. The OS1 offers clean, dense data across its entire field of view for accurate perception and crisp detail in industrial, automotive, robotics, and mapping applications.
90m
Range at 10%
200m
Max Range
45°
Vertical Field of View
128
Channels of Resolution
5.2M
Max points Per Second
20 Hz
Max Frame Rate
-40°C
Min. Operating Temperature
60°C
Max. Operating Tempture
IP68 &IP69K
Ingress protection
MTTF
≥ 250,000 hrs
Sample Lidar Data
Up to 5.2m points per second with 128 channels
of vertical resolution.
45° FOV and 200m range to see floor to ceiling across entire warehouse rows.
Ultra light weight for extended drone flight times and dual return mode for improved mapping capabilities, even in environments with small branches and wires.
Calibrated reflectivity to help eliminate dust and obscurants from data.
Let's drive society's shift towards full automation.
Engineered for industrial, robotics, mapping, security, crowd analytics, traffic, and automotive applications.
Powered by the L3
21.47 Gmacs Of signal processing 125 Million Transistors on chip 5.2 Million Max points per second
Our new L3 chip comes with a 100% increase in range.
The evolution of our Chips
Performance is measured in Range x Points per second.
Interested in our previous sensor?
Build faster with high-volume manufacturing and worldwide fulfillment.
We offer a scalable outsourced manufacturing and operate local fulfillment in three major global regions, ensuring efficient order fulfillment, faster lead times, and lower total costs.
Frequently
Asked Questions
Help CenterWe offer our lidar sensors in three different resolution configurations: 32, 64, and 128 vertical channels (beams) of resolution. Higher resolution enables better perception and detection performance at longer ranges. In addition to resolution options, we offer beam configuration options on our 32 and 64 channel sensors; gradient (denser in the middle of the field of view, sparser on the top), below horizon (all channels on the bottom half of the field of view), and above horizon (all channels on the top half of the field of view). Finally we offer different lidar sensor extended warranties, cap options, and varying cable types, connectors, and lengths.
Yes. Our lidar sensors are IP69K rated, meaning they can withstand power washing up to 1600 psi, and can be submerged in up to 1 meter of water without affecting operation. The sensors maintain visibility in rain, snow, and fog. Lidar also works consistently through all lighting conditions, including night, sunrise, sunset and full midday sun.
Our lidar sensors are priced depending on the type of sensor, the resolution, and the configuration options. Please contact us and we’d be happy to share a quote to fit your needs.
You can purchase a lidar sensor by reaching out to us directly or through our global distributor network. Please visit our distributors page to find a distributor in your region.
